Installation Instructions

Fishing Rod Holder

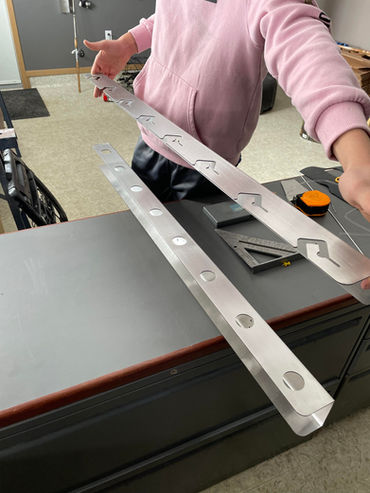

Our fishing rod holder is made of 14-gauge polished stainless steel. Each piece is laser-cut, formed to shape, hand polished, packaged, and sent directly to you.

We specifically designed the shape so that your fishing rods will stay put, however you choose to mount it: vertically, horizontally, or even on the ceiling. Mounting holes are conveniently located at 16- and 24-inch intervals to align with conventional wall studs and ceiling joists.

The rod holders can be located anywhere you see fit. Install them outdoors in all locations, weather conditions, and climates. Install them indoors in your boathouse, garage or cabin for a classy and organized look!

Installation Instructions below.

Step One

Get your tools: drill, screwdriver, stud finder, measuring tape, level, pencil

Vertical & Overhead Mounting

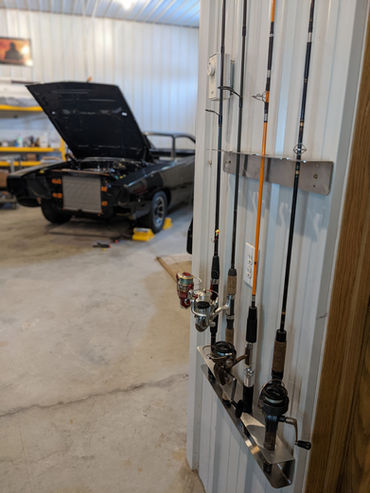

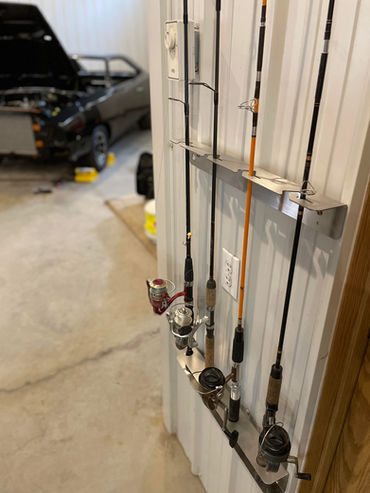

We recommend mounting the bottom edge of the base approximately 30 cm (12”) off the floor. You can mount the base lower or higher depending on the length of your rods. The distance between the holder base and top should be between 91 cm (36”) and 112 cm (48”). Once the rod holder is secured in position, place the rod handle in the base first, then push the upper top end of the rod in though the channel so that the rod rests in the circular profile.

Note: If your rod is strung, the fishing line should remain outside the channel. This also applies to ceiling mounts.

Horizontal Mounting

Horizontal mounting instructions: Locate stud on the wall to mount rod holder base. It can be mounted at any height along the stud within comfortable reach. Use the centre mounting hole for maximum support. Mount the rod holder top 122 cm (48”) to the right of the base. If construction surface is solid wood or a panel, this distance can be shortened to 91 cm (36”).

Note: When mounted horizontally, the fishing rod and line will insert into the channel. Thanks to its unique design, you can leave your rods strung with your favourite lure.

Note: When mounted horizontally, the fishing rod and line will insert into the channel. Thanks to its unique design, you can leave your rods strung with your favourite lure.
